Description
Shelta Asta Cantilever Umbrella
Beautifully crafted from marine grade raw materials, including drawn / extruded aluminium and aluminium castings, with stainless steel fasteners. The mast is a truly impressive 120 x 76mm section – that and all frame components are engineered to achieve a 60kph wind rating. The frame is powder coated a beautiful Silver Grey. Fabric is Sunbrella – the legendary 270gsm solution dyed acrylic that will almost never fade.
Other features include:
- Infinite Tilt Positions – horizontal to 55°
- 360° umbrella rotation; 12 position rotate lock – on insertable lock pin on lower mast
- Detachable crank lever opening / closing
- Retractable LED light bracket on hub
- Protective Waterproof Cover
INSTALLATION
INSTALLATION
On Concrete “bolt down”.
The 25cm round base flange (bottom of the umbrella mast) is supplied
with the umbrella. It has 4 countersunk securing holes into which 10mm
diameter x 100mm long DYNABOLTS, LOCKSINS or CONCRETE SCREWS
(to be purchased) can be secured in pre-drilled holes in the concrete.

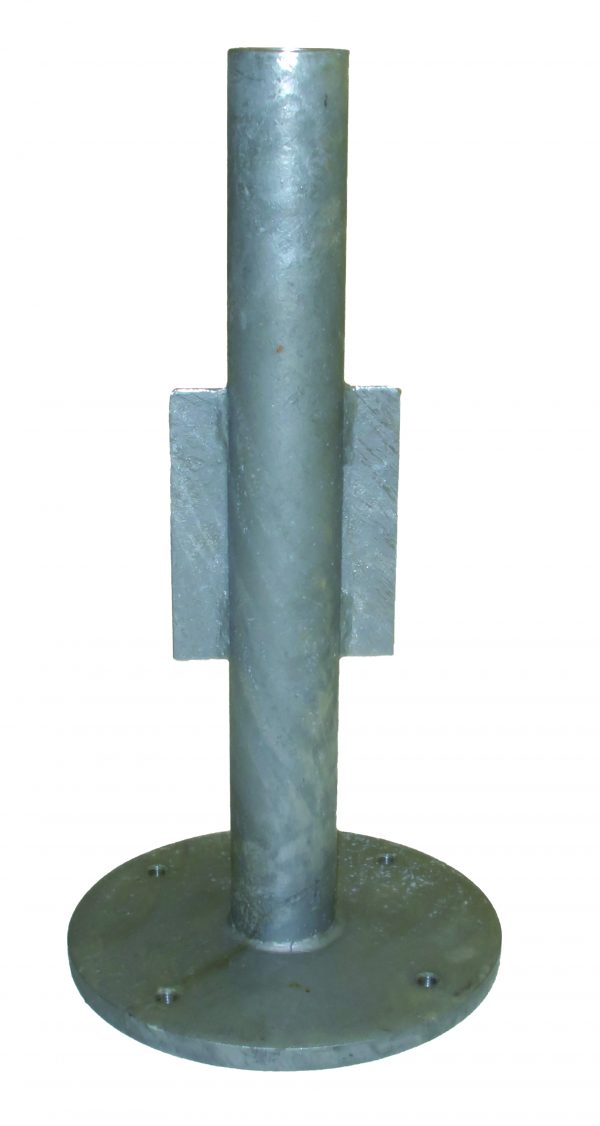

Inground Base recommended – (Optional purchase),
for cementing into the ground – length 50cm.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 220 × 50 × 40 cm |
| Size | 350cm Square, 400cm Octagonal, 400 x 300cm Rectangle |
